New Design 5M SMD2835 Led Strip 120Leds/m Led Strip Light IP67 Waterproof Led Light Strip Flexible Room Decor Lightings

$2.07

SKU: 1600805217182 Category: Tags: ,
  • Color Temperature(CCT) : 4100K (Neutral White)
  • Lamp Luminous Efficiency(lm/w) : 103
  • Warranty(Year) : 5-Year
  • Lighting solutions service : Lighting and circuitry design, Project Installation
  • Lifespan (hours) : 50000
  • Working Time (hours) : 50000
  • Light Source : LED
  • Item Type : Neon Lights
  • Support Dimmer : Yes
  • Input Voltage(V) : DC 24V
  • CRI (Ra>) : 90
  • Lamp Luminous Flux(lm) : 1100
  • Working Temperature(℃) : -25 – 45
  • Working Lifetime(Hour) : 50000
  • Lamp Body Material : Copper
  • IP Rating : IP20
  • Place of Origin : Guangdong, China
  • Brand Name : Lumimore
  • Model Number : LT-SW28N120-006
  • Application : LANDSCAPE
  • LED Light Source : 2835 SMD LED
  • LED Quantity : 120LEDs/m
  • Power : 10 w
  • Voltage : DC 24v
  • Waterproof : IP20/IP65/IP67/IP68
  • Dimension : L5000*W10*H1.4mm
  • Installation : 3M 300LSE adhesive tape
  • Dimming function : PWM/ 0-10V/ DALI
  • Mode : LT-SW28N120-006
  • keywords : led strip 2835 120 led

Led Strip 2835 120 Led 2835 Led Strip Light Ip67 Led Strip 2835 Rgb

New Design 5M SMD2835 Led Strip 120Leds/m  Led Strip Light IP67 Waterproof Led Light Strip Flexible Room Decor Lightings

Product Description

New Design 5M SMD2835 Led Strip 120Leds/m  Led Strip Light IP67 Waterproof Led Light Strip Flexible Room Decor Lightings



The Lumitape® Static white high efficacyLED strip features even lighting, longer lifespan, High efficacy and high CRI, it is designed to provide consistent linear lighting for limited spaces in wide variety of applications for cove lighting and indirect lighting in hotels, restaurants, shops, offices and homes.

High efficacy up to 138Lm/w
2835, 120LED/m, 24V
3-5 years warranty
0-10V, DALI, PWM Dimmable


Electrical technical data

Nominal input voltage

24V

Voltage range

23-25V

LED types

2835 SMD

Product dimension

L5000*W10*H1.4mm

LED QTY/m

120pcs

PCB dimension

10mm x 3oz (1/2oz)

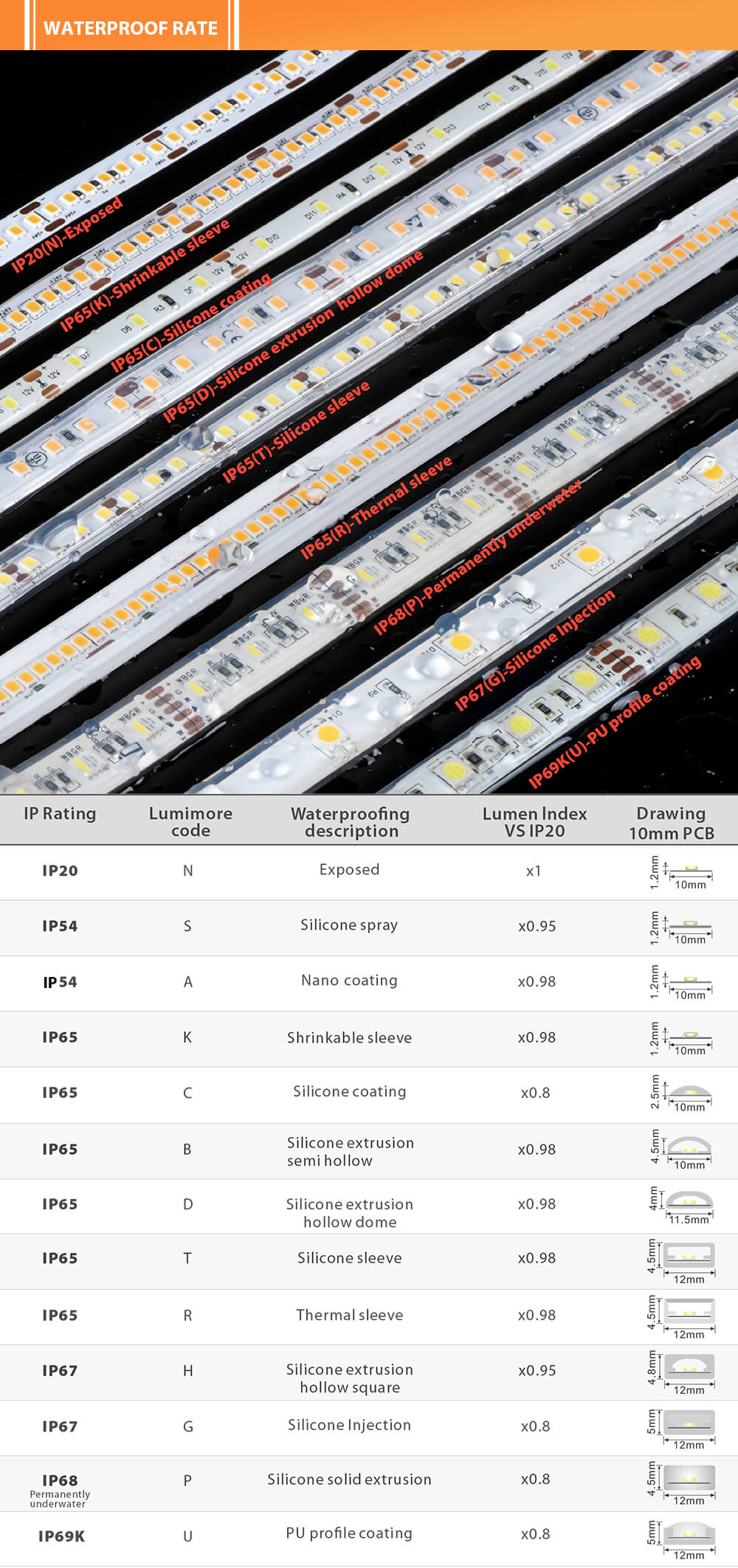

IP rating (optional)

IP20 (IP65,IP67,IP68)

Cut points

50mm

Beam angle

120°

Material of coating

N/A

Bend radius

R<50mm

Customized length/reel

0.1 to 30meters

Dimming function

PWM/ 0-10V/ DALI

Standard length/reel

5meters

Connection

2 x 0.5MM2 / 20AWG wire / DC connector

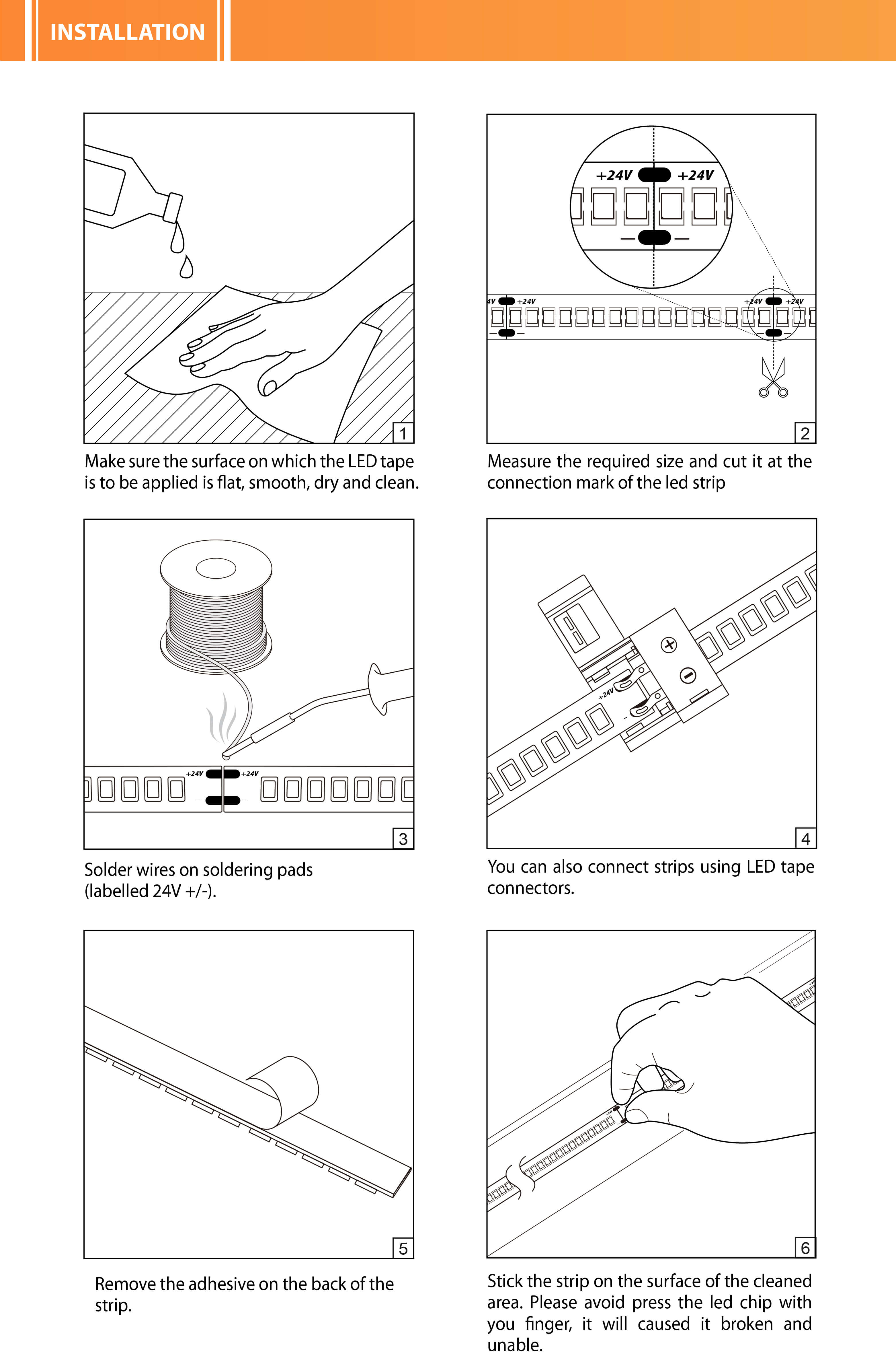

Installation.

3M 300LSE adhesive tape

Light technical data

Part number

LT-SW28N120-XX90-24-YYY

XX:24=2400K/ 27=2700K/ 30=3000K/ 40=4000K/ 50=5000K/ 57=5700K/ 65=6500K

YYY: 200=20W/150=15W/ 100=10W

Power consumption/m

20W

15W

10W

CCT

2400~6500K

Lumen output/m

1640~1940Lm

1290~1530Lm

890~1050Lm

Efficacy

82~97Lm/w

86~102Lm/w

89~105Lm/w

MAXRUN® in series

5m (4.2A)

8m (5A)

10m (4.2A)

Binning tolerance & code

SDCM<3

SDCM<3

SDCM<3

CRI (White)

Ra+92;R9+68

TM30

Rf=90 Rg=99

TLCI(Qa)

90

Warranty

3years

3years

3years



Cut points



New Design 5M SMD2835 Led Strip 120Leds/m  Led Strip Light IP67 Waterproof Led Light Strip Flexible Room Decor Lightings

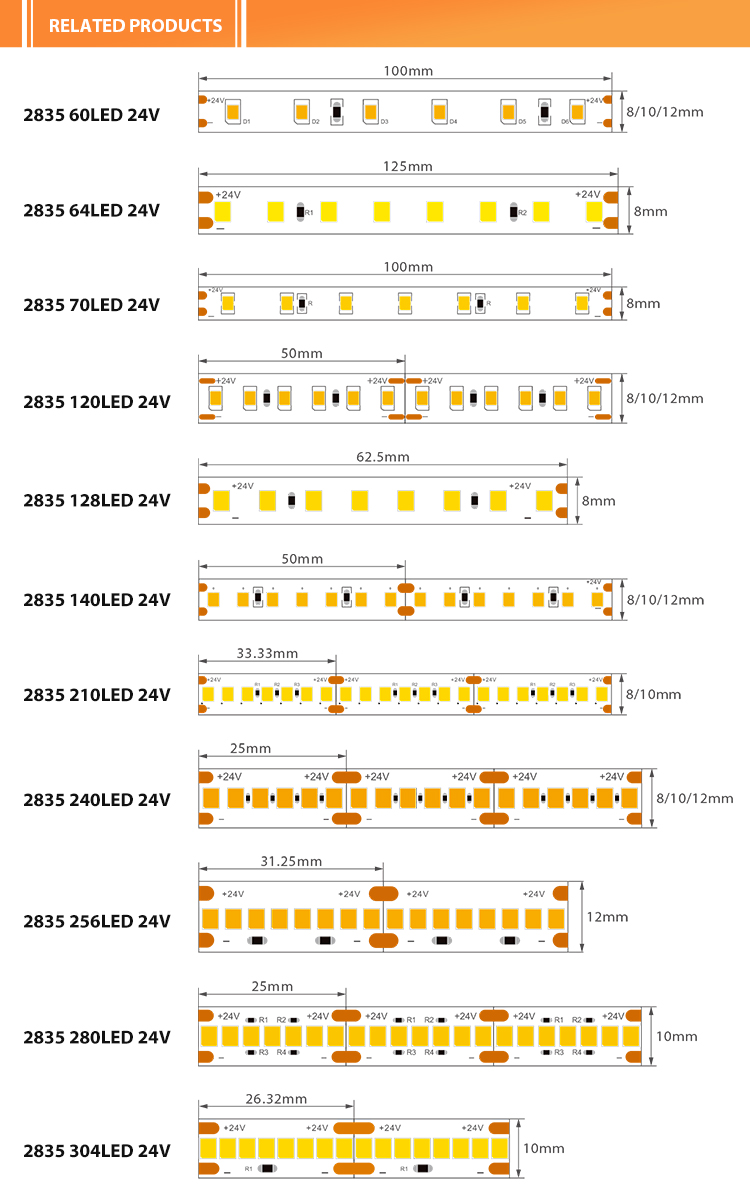

Related Products



CERTIFICATE

New Design 5M SMD2835 Led Strip 120Leds/m  Led Strip Light IP67 Waterproof Led Light Strip Flexible Room Decor Lightings

New Design 5M SMD2835 Led Strip 120Leds/m  Led Strip Light IP67 Waterproof Led Light Strip Flexible Room Decor Lightings

New Design 5M SMD2835 Led Strip 120Leds/m  Led Strip Light IP67 Waterproof Led Light Strip Flexible Room Decor Lightings





New Design 5M SMD2835 Led Strip 120Leds/m  Led Strip Light IP67 Waterproof Led Light Strip Flexible Room Decor Lightings

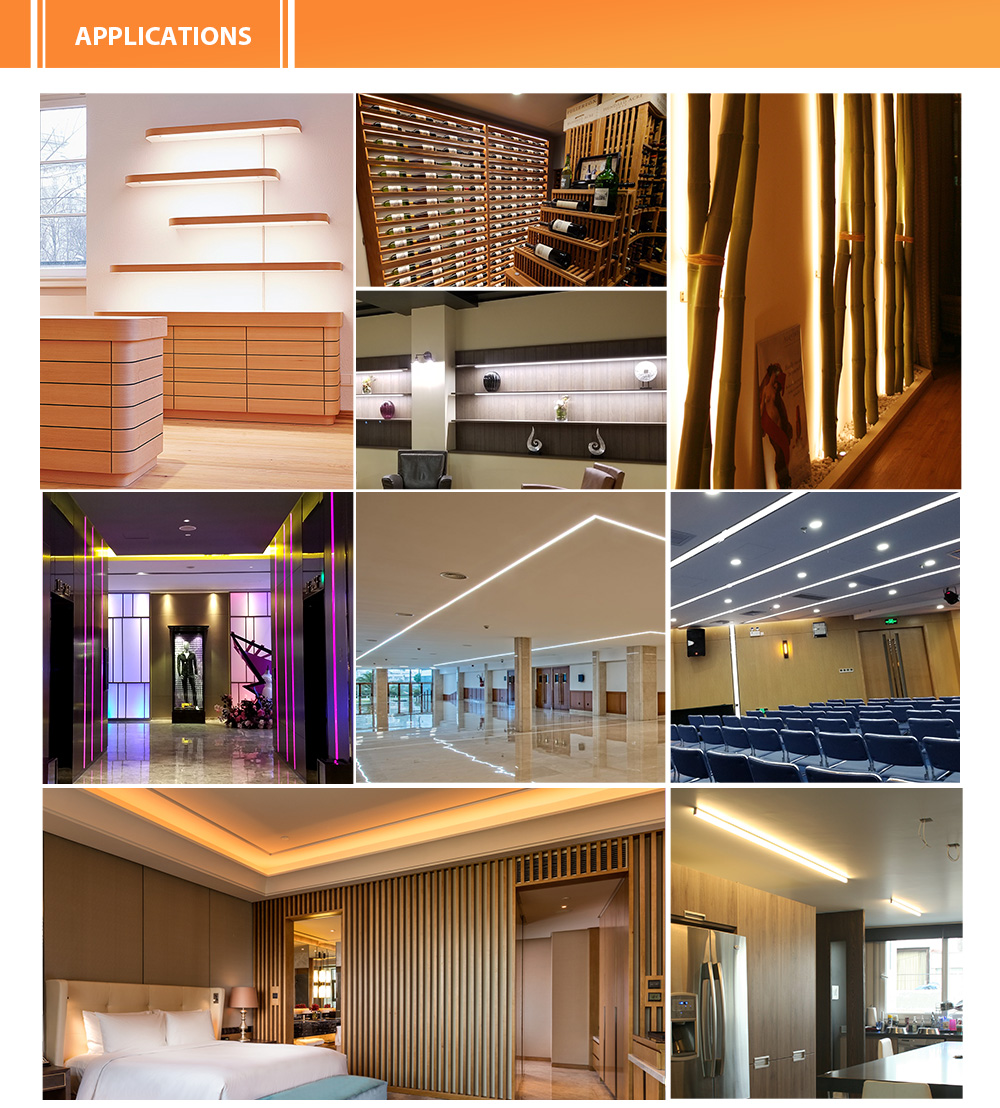

Application
New Design 5M SMD2835 Led Strip 120Leds/m  Led Strip Light IP67 Waterproof Led Light Strip Flexible Room Decor Lightings

New Design 5M SMD2835 Led Strip 120Leds/m  Led Strip Light IP67 Waterproof Led Light Strip Flexible Room Decor Lightings New Design 5M SMD2835 Led Strip 120Leds/m  Led Strip Light IP67 Waterproof Led Light Strip Flexible Room Decor Lightings





New Design 5M SMD2835 Led Strip 120Leds/m  Led Strip Light IP67 Waterproof Led Light Strip Flexible Room Decor Lightings





 New Design 5M SMD2835 Led Strip 120Leds/m  Led Strip Light IP67 Waterproof Led Light Strip Flexible Room Decor Lightings

Company Information



 New Design 5M SMD2835 Led Strip 120Leds/m  Led Strip Light IP67 Waterproof Led Light Strip Flexible Room Decor Lightings

Packaging & Shipping

New Design 5M SMD2835 Led Strip 120Leds/m  Led Strip Light IP67 Waterproof Led Light Strip Flexible Room Decor Lightings

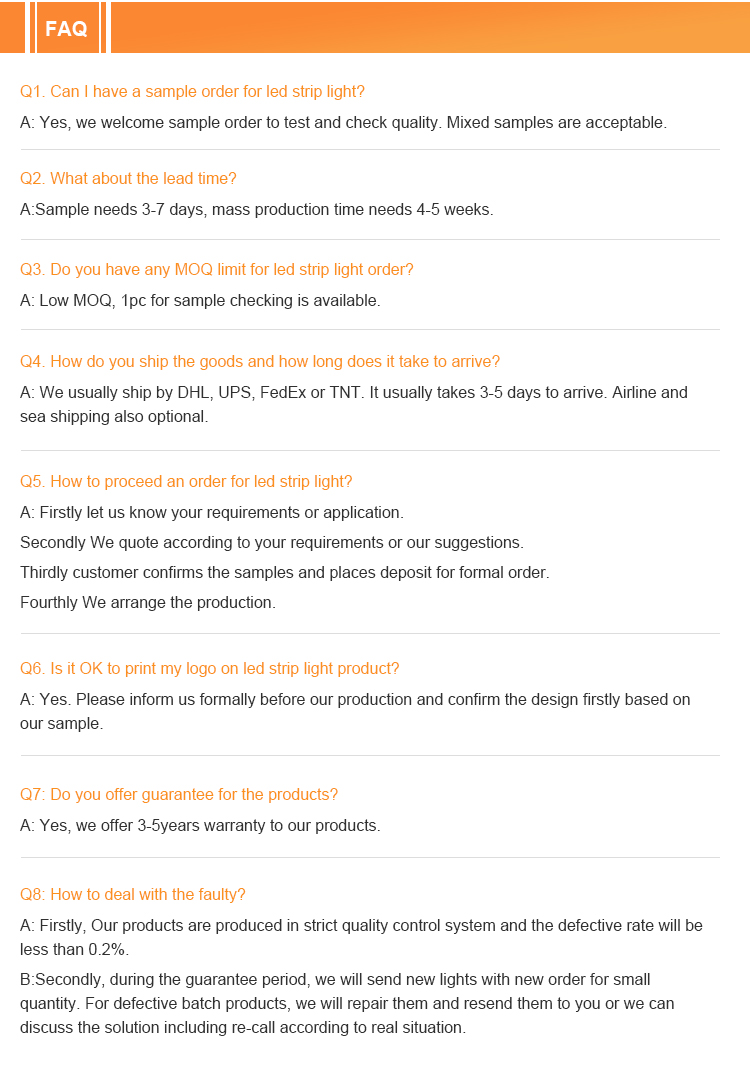

FAQ



New Design 5M SMD2835 Led Strip 120Leds/m  Led Strip Light IP67 Waterproof Led Light Strip Flexible Room Decor Lightings

Lamp Power(W)

10

Emitting Color

White

Wattage

10W
